Small but mighty: the clip-on microphone in this professional set is nearly invisible. The included cardioid pattern microphone has both great resistance to feedback and clear voice reproduction. The true diversity receiver means you get the highest degree of signal reliability at all times. Sync up the bodypack with the receiver with a single touch of a button.
Ideal for concealing the body pack transmitter in your clothing, you can connect an external mute button (option) to the additional 2.5 mm jack socket on the bodypack transmitter.

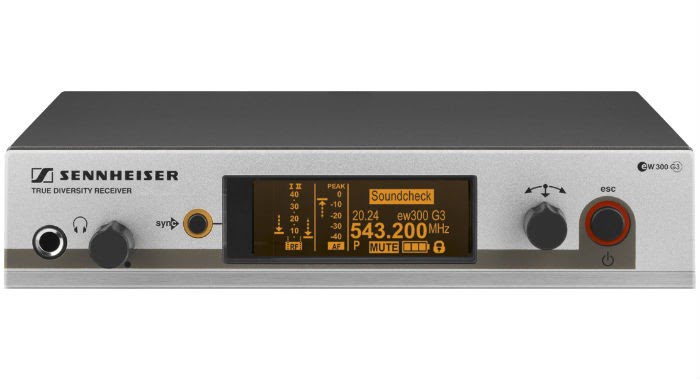

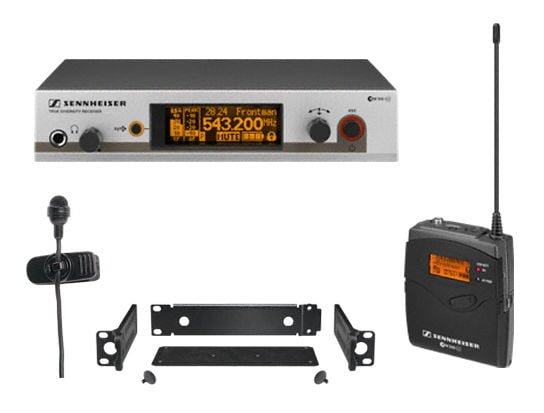

1 EM 300 G3 rack-mount receiver

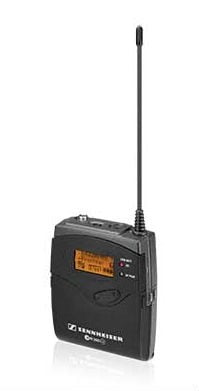

1 SK 300 G3 bodypack transmitter

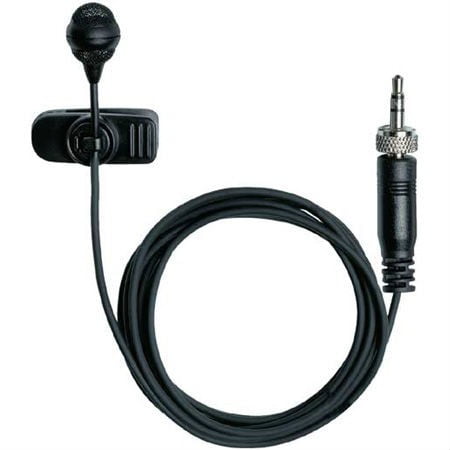

1 ME 4 clip-on microphone (cardioid)
1 GA 3 rack mount
1 NT 2 power supply unit
2 AA batteries
NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.
RF frequency range 516….. 865 MHz
Transmission/receiving frequencies 1680
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: 18 dBu max
Audio output level (unbalanced) Jack: 12 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 980 g
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range 1,8 V line
Input voltage range 2,4 V line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Transducer; Microphone type elektret
AF sensitivity 40 mV/Pa
Sound pressure level (SPL) 120 dB(SPL) max.
Pick-up pattern cardioid
