The Lexicon MX200 is a great value multi-effects processor from one of the world’s most renowned manufacturers. Lexicon have designed the MX200 to be an affordable and easy to use unit for live or studio applications. Whether you want to simply add a little reverb or get creative with some of the 32 other effects on offer, the Lexicon MX200 comes highly recommended.

TWO PROCESSORS. TWO UNIQUE APPLICATIONS. ONE RACK SPACE. 32 LEGENDARY LEXICON EFFECTS. ENDLESS POSSIBILITIES.
Whether you’re looking for raw processing power with instant front-panel access for live performance, or seeking rich, smooth and complex processing algorithms in the studio, Lexicon brings the best of both worlds together in the MX200 Dual Reverb/Effects Processor. Designed with both live sound reinforcement and home recording in mind, MX200 features the deep, rich reverb and effects algorithms that built the Lexicon legend, and adds increased versatility with specialty effects and dbx dynamics. Each of the 32 stunning reverbs and effects – and their parameters – are all instantly accessible within a single button push or knob turn on the intelligently designed front panel without wading through bank after bank of tedious menus. Add powerful Editor/Librarian and VST/Audio Units software, and bring 35 years of Lexicon heritage to your desktop.

STUDIO OPERATION
In the studio, advances in computer-based recording have led many engineers to value the instant control and heads-up use of plug-in effects – but many still yearn for the rich, complex sound found in a dedicated hardware processor. Now, Lexicon provides a USB interface with intuitive cross-platform VST and Audio Unit plug-in windows, allowing the MX200 to function as a “hardware plug-in” – recognized and functioning within VST and Audio Units-compatible DAWs as a plug-in effect, but still operating as a dedicated hardware unit. This unique USB plug-in feature allows users to easily control the MX200 in their computer-based recordings within the graphical interface that appears in the recording application like a plug-in, with full automation and recall features. Now software-based recording engineers can stay focused on the heart of their studio – the application window of their recording software. A powerful cross-platform Editor/Librarian software package is included as well. MX-Edit lets you create, edit, compare, save and load reverb and effects programs for use with your MX200 on your Mac or Windows XP computer.

LIVE OPERATION

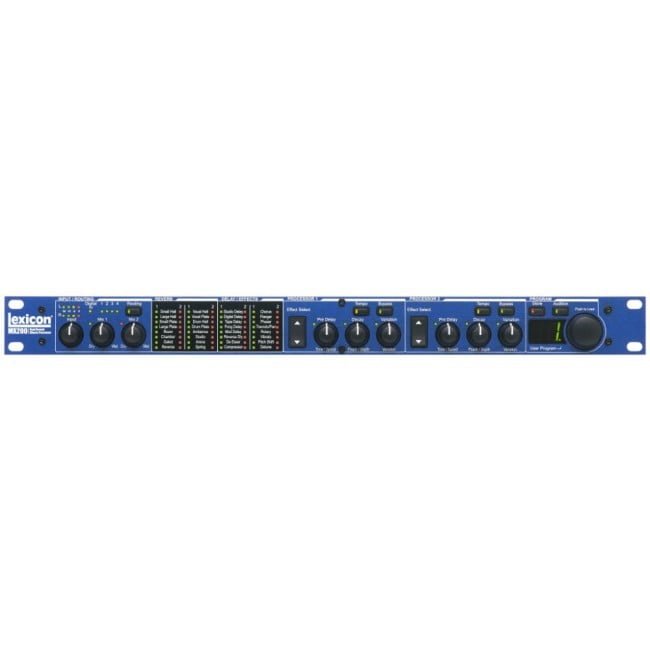

Those using the MX200 in the live arena will appreciate its intuitive front panel layout, with an Active Reverb/Effects Matrix that constantly displays which two of the 32 available effects are active, and all functions available within a single button-push turn of a knob. Dual independent processor control areas with dedicated Effects Select, Tempo, Bypass and three parameter control knobs provide instant access with precise and meaningful control over the most critical parameters for the selected effect. Parameter change LEDs illuminate to indicate any change from the 99 meticulously crafted Factory or 99 User Programs. Choose from five digitally-recorded audio samples to Audition the selected effects.

• 16 legendary Lexicon’ reverbs
• Lexicon delays & modulation effects
• dbx’ Dynamics
• Dual-Processor design
• 4 Routing Configurations:
• Dual Mono
• Cascade
• Dual Sterio (Paralel)
• Mono Split
• 99 Factory / 99 User Programs
• USB “Hardware Plug-In” Feature
• VST’ and Audio Units Plug-In Software
• MX-Edit“ Editor/Librarian Software
• S/PDIF Digital Input / Output
• 24 bit, 48kHz Sample Rate

Reverbs:
Small Hall
Large Hall
Small Plate
Large Plate
Room
Chamber
Gated
Reverse
Vocal Hall
Vocal Plate
Drum Hall
Drum Plate
Ambience
Studio
Arena
Spring

Delays:
Studio Delay
Digital Delay
Tape Delay
Pong Delay
Mod Delay
Reverse Delay

dbx’ Dynamics
Compressor
De-Esser

Effects
Chorus
Flanger
Phaser
Tremolo / Pan
Rotary
Vibrato
Pitch Shift
Detune

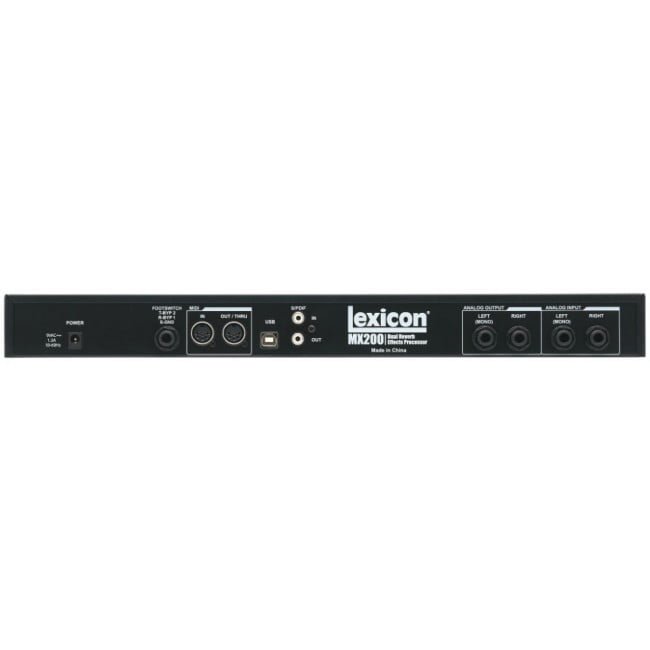

Audio Inputs (2) 1/4” TRS balanced or unbalanced
Input Impedance 20k Ohms balanced, 10k Ohms unbalanced
Input Level 4dBu Nominal, 20dBu Maximum
Frequency Response 20 Hz – 20kHz, ref. 1kHz /- 1dB
THD N <.007% 20Hz – 20kHz
Audio Outputs (2) 1/4” TRS balanced or unbalalanced

Reverbs:
Small Hall
Large Hall
Small Plate
Large Plate
Room
Chamber
Gated
Reverse
Vocal Hall
Vocal Plate
Drum Hall
Drum Plate
Ambience
Studio
Arena
Spring

Delays:
Studio Delay
Digital Delay
Tape Delay
Pong Delay
Mod Delay
Reverse Delay

dbx’ Dynamics
Compressor
De-Esser

Effects
Chorus
Flanger
Phaser
Tremolo / Pan
Rotary
Vibrato
Pitch Shift
Detune

Brand

Lexicon
