£45.00 Inc VAT

2-channel Passive Direct Box

  • Dual Channel

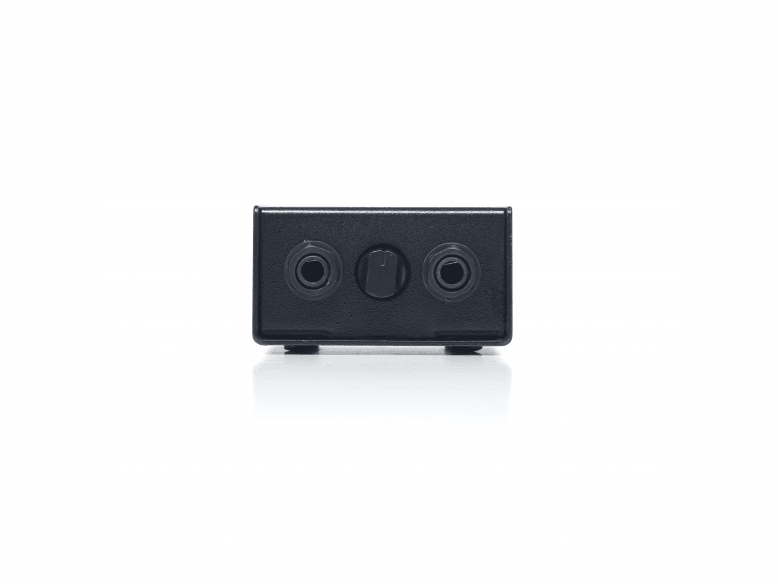

  • (2) 1/4” 50k Ohm TS Inputs

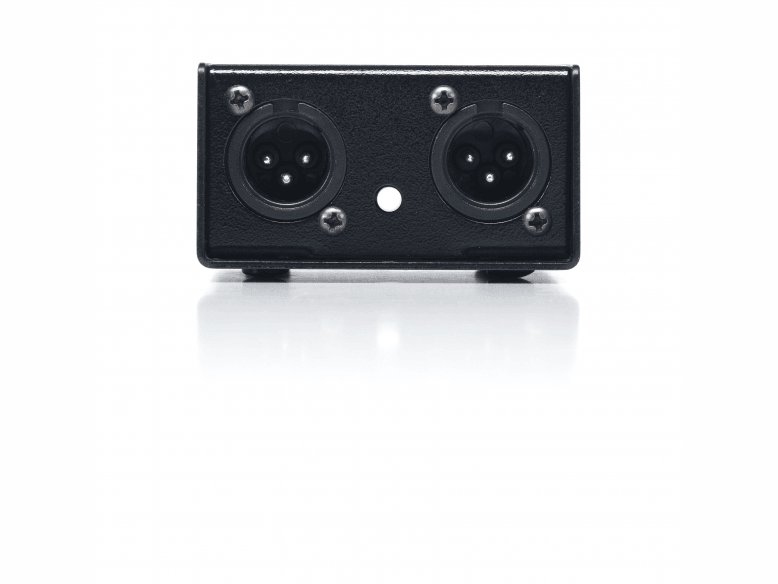

  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch
Category: SKU: DI/DBX03

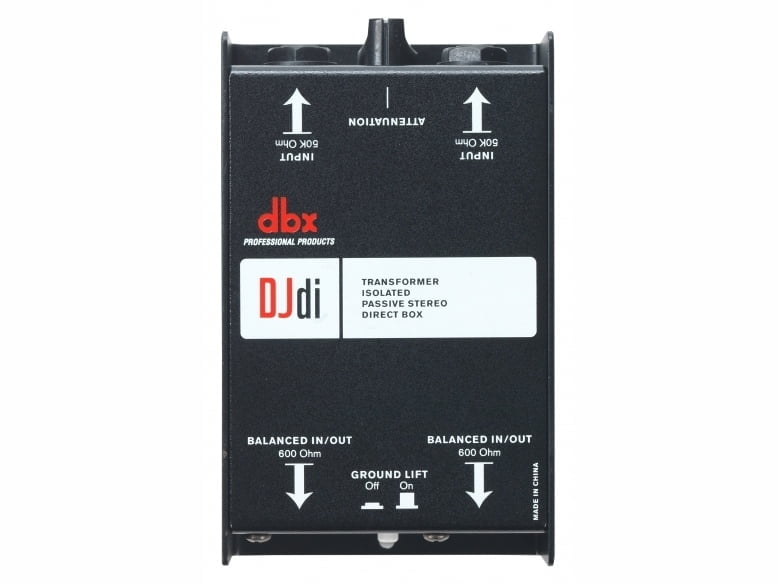

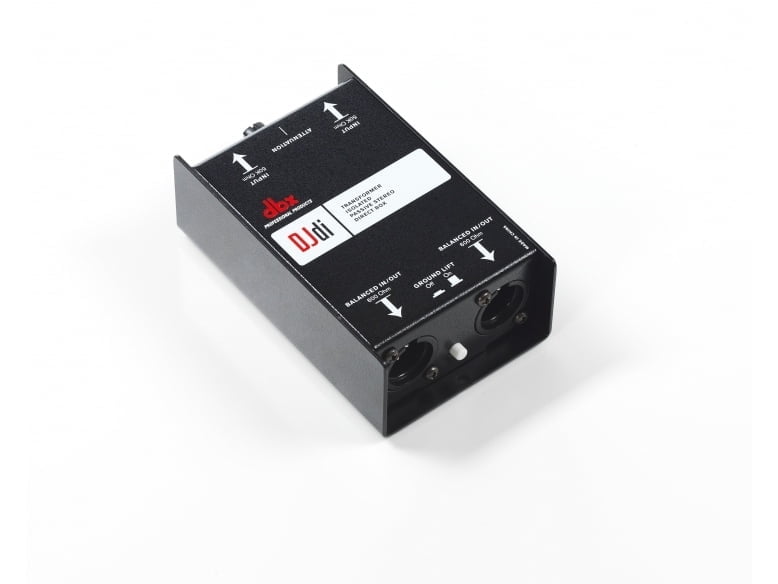

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications.
Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncoloured operation with no power required.

Brand

DBX

Reviews

There are no reviews yet.

Be the first to review “DBX DJDI”
CircuitPassive
Inputs2
Input Connectors1/4” TS (Tip Hot, Sleeve Ground)
Input TypeUnbalanced, RF Filtered
Input Impedance50 kOhm
Outputs2
Output ConnectorsMale XLR, Balanced, Pin 2 hot
Output Impedance600 Ohms
Noise Level-104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz)0.23% typical @ +4dBu @ 1kHz
Insertion Loss21dB typical
