Datavideo GO 650 Studio

£6,949.00 Inc VAT

4 Channel HD Portable Video Production Studio

The “all-in-one” kit comes with the following,

  • SE-650 video switcher,
  • TLM-102 dual monitor for preview and program,
  • NVS-25 streaming encoder,
  • HDR-1 H.264 USB recorder



PC NOT REQUIRED FOR STREAMING!
Datavideo

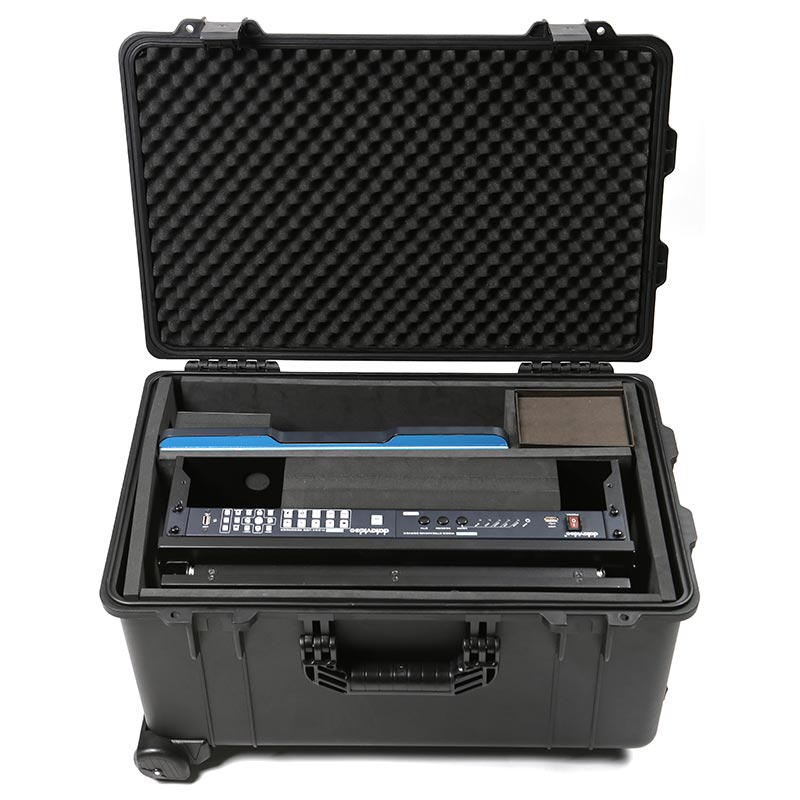

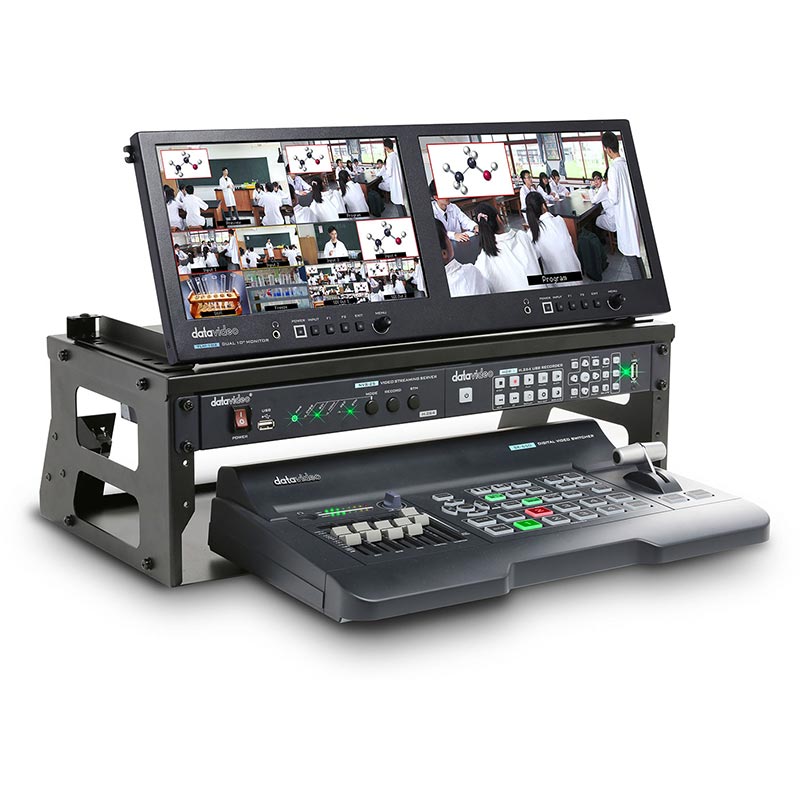

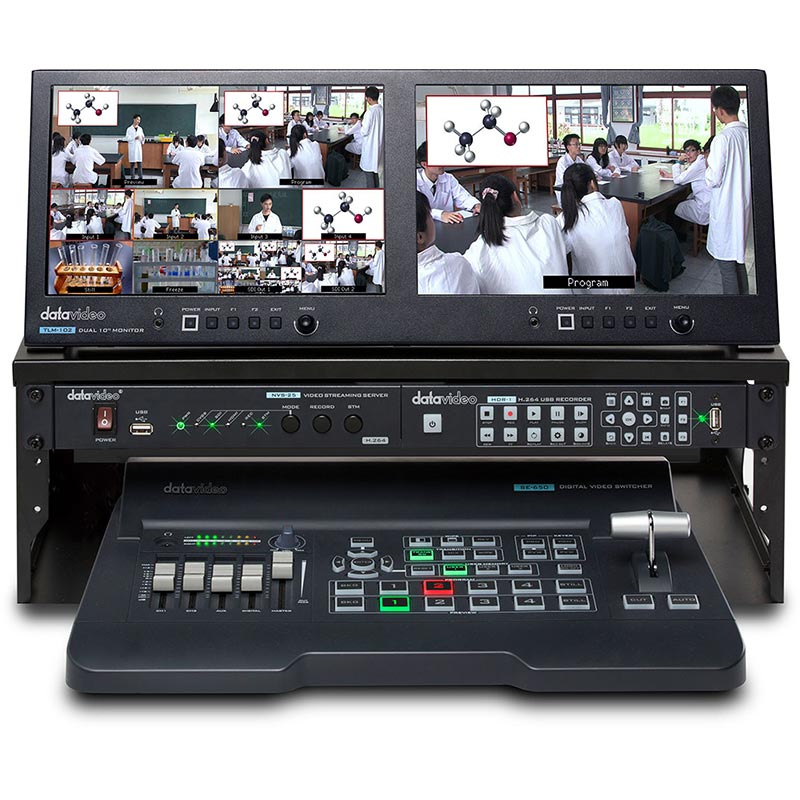

All of your video production equipment all inside one portable case. The New Datavideo GO-650 makes transporting your equipment from one job to the next a lot easier. The all in one kit comes with an SE-650 video switcher, TLM-102 dual monitor for preview and program, NVS-25 streaming encoder, and HDR-1 H.264 USB recorder all racked, connected, and packed in a rugged hard case.
The Datavideo GO-650 is ideal for various applications such as worship, live events, seminars, school sporting events, and corporate presentations.

SE-650

  • 2x HD-SDI and 2x HDMI inputs
  • Built-in audio mixer
  • Chromakey, Lumakey, DSK, PIP
  • Still store
  • User memories

TLM-102

  • Dual 10.1” LCD monitor
  • SDI and HDMI inputs and outputs
  • Vectorscope and waveform monitor
  • SDI to HDMI cross conversion and vice versa
  • Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
  • User definable function buttons
  • 4RU rack mount-able

NVS-25

  • H.264 Streaming encoder
  • HD-SDI, HDMI, and CV inputs
  • Compliant with RTMP, RTSP, and HLS protocols
  • Compatible with most CDN including YouTube, UStream, and Facebook Live

HDR-1

  • Standalone H.264 USB recorder
  • Records high quality Mp4 files up to 20Mbps
  • Easy to use front panel control buttons
  • Record/pause feature allows single file recording even with breaks in proceedings

HC-800

  • Heavy duty case made from super strong polypropylene
  • Trunk style with retractable handle and wheels
  • Rubber seals to protect valuable equipment from water & dust
  • Handy pull-out handle and wheels for easy transporting

Whats in the Box

  • 1 x SE-650
  • 1 x HDR-1
  • 1 x NVS-25
  • 1 x TLM-102
  • 1 x HC-800
  • 1 x Rack kit
  • 1 x AD Switch DC 12V
  • 1 x AC Cord
  • 3 x HDMI Cable
  • 2 x BNC Cable
  • 1 x Ethernet Cable

SE-650

  • 4 video input : HD-SDI x 2 + HDMI x 2
  • 3 video output : HD-SDI x 1 + HDMI x 2
  • Any Input can be used as a Frame store (Stills Store)
  • Assignable Outputs
  • Frame Sync on each input
  • Flexible Mix/Effects Processor
  • 1 Upstream PIP, supporting Chromakey & Luma Key
  • Full M/E Preview function
  • Wipe Generator: 32 Wipe Patterns, including Circle & Heart – Borders & Softness Control
  • Logo insertion ( X/Y size)
  • XPT (Cross Point Assignment)
  • Tally Output
  • 6 Channel Audio Mixer
  • Audio input : RCA Analogue (L/R) x 2 + Microphone x 2  Audio output : RCA Analogue (L/R) x 2 + Stereo headphone mini Jack x 1
  • Audio em-bedded function
  • 4:2:2 10 bit
  • 50 Virtual set backgrounds included
  • 1000+ Frame Store
  • Audio follow video
  • Multi-language

Stinger transition



TLM-102

LCD Size 10.1”
Resolution 1280 x 800
Active Area 216.96(H) × 135.60(V) mm
Dot Pitch 0.0565 (H) × 0.1695 (V) mm
Contrast Ratio 800:1 View Angle (Typ.) 170°(H) / 170°(V)
Aspect Ratio 16:10
Brightness 300cd/m²
Video Input 1x HDMI, 1 x SDI
Video Output 1x HDMI, 1 x SDI
SDI Signal Format 1920 x 1080p 50/59.94/60
1920x1080p
23.98/23.98sf/24/24sf/25/25sf/29.97/29.97sf/30/30sf
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720 x480i (NTSC)
720 x576i (PAL)
HDMI Signal Format
1920x1080p 50/59.94/60
1920x1080p 23.98/24/25/29.97/30
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720 x480i (NTSC)
720 x576i (PAL)
Audio Input
Embedded Audio
Audio Output
Analog stereo (Phone Jack)
Tally Tally Port x 1
Service USB x 2
Power DC 9~24V
Power Consumption ≤24
Watts Operating Temperature -10°C ~ 40°C (14°F-104°F) 20
Storage Temperature -40°C ~ 60°C(-40°F-140°F)
Dimension(mm) 482.5(L)× 178(W)× 38(D) mm
Weight 3.6Kg
Accessory TALLY× 1 piece 12V DC adapter× 1 piece Manual× 1copy

Brand

Datavideo

Datavideo
