The Project
All Saints’ Church in Shillington approached DM Music with no existing sound system in place, making this their first-ever PA installation. The aim was to introduce a clear, discreet and easy-to-use audio system that would enhance both spoken word and music, while remaining sympathetic to the historic building.
The result was a transformative upgrade - dramatically improving clarity and engagement - met with great enthusiasm from the church community.
The Challenge
With no prior system, the project required a complete solution that would:
- Deliver clear and intelligible sound across all areas of the church
- Remain visually unobtrusive within a traditional setting
- Be simple and intuitive for first-time users
- Provide flexibility for different service styles and locations
- Include an accessible hearing solution for the congregation
- Allow for future expansion as needs evolve
Key Features
Audio System
- Fully integrated digital mixer system with 12 inputs for current and future use
- Automatic preset recall on power-up for simple day-to-day operation
- Built-in auto-mixing, EQ and compression for consistent sound quality
- Installation of all equipment within a lockable vestry rack
Loudspeakers
- Discreet, custom-sprayed column array loudspeakers throughout:
- Nave & aisles coverage via 16-driver arrays
- Additional coverage for aisles, choir and Lady Chapel
- Controlled dispersion technology for clear, focused sound in a reverberant space
- Dedicated “Lady Chapel only” mode for smaller services
Microphones
- Two rechargeable wireless tie-clip microphones for clergy
- One wireless handheld microphone for flexible use
- One wireless gooseneck lectern microphone for adaptable positioning

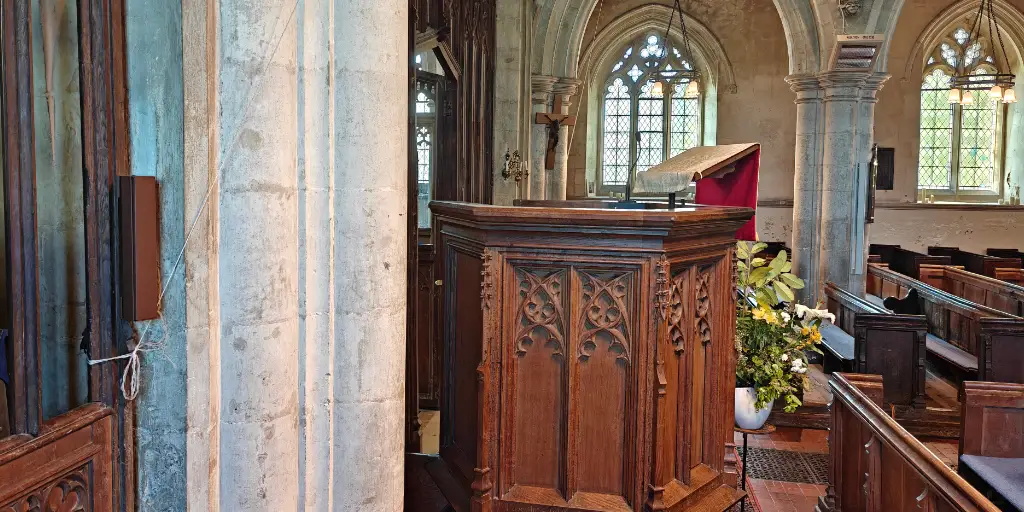

- One wired pulpit microphone with local mute switch and LED indicator
- Remote antenna system for reliable wireless performance throughout
Accessibility
- Full induction loop system covering nave, aisles, choir and Lady Chapel
- Designed to meet modern accessibility standards
Playback & Connectivity
- Bluetooth and auxiliary inputs at both front and rear of the nave
- Simple connection for weddings, funerals and visiting users
- Integrated audio playback and recording capability
Control
- Wireless tablet control with a simple, user-friendly interface
- Allows adjustment of levels and source selection from anywhere in the church
- Semi-automated mixing reduces need for technical expertise
Installation
- Fully discreet cabling and hardware installation
- No fixings into stonework—mounted via mortar joints only
- Clean, sympathetic finish throughout
The Solution

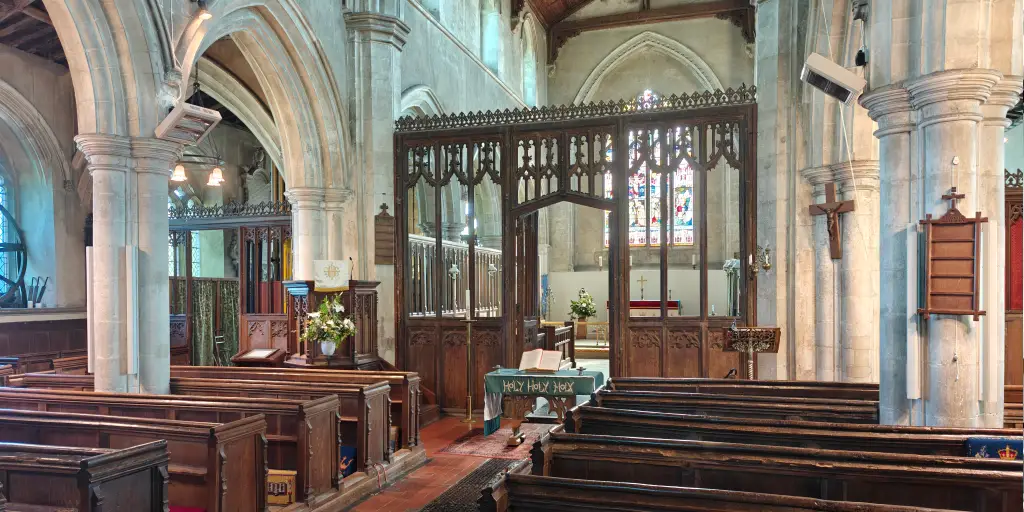

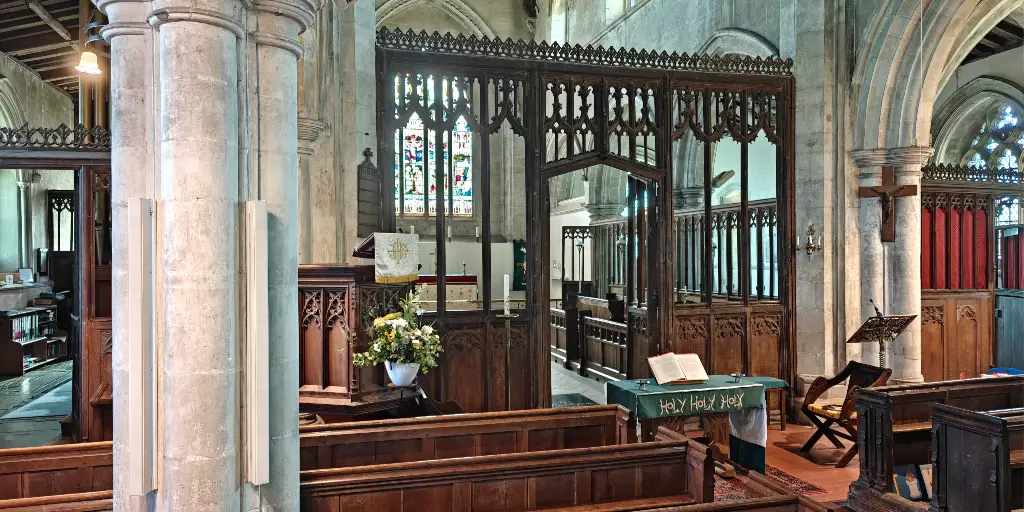

The new system has completely transformed the way All Saints' Church communicates during services. The column array loudspeakers deliver clear, even coverage across the entire building, ensuring speech is intelligible and music is well balanced.
The digital mixer and wireless control system provide a straightforward user experience, allowing volunteers to operate the system with confidence, even with minimal technical knowledge. Automatic presets and semi-autonomous mixing further simplify operation.
The addition of a comprehensive induction loop system ensures inclusivity for hearing aid users, while flexible microphone and input options support a wide range of services and events.
For a church installing a PA system for the first time, the result has been a significant and immediately noticeable improvement, creating a more engaging and accessible worship environment for all.
