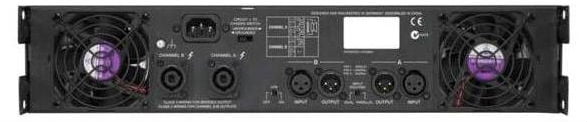

EV CP4000S
EV CP4000S
EV CP4000S
Qty:
EV
DM Price:
£2,899.00
(Inc VAT)
Buy this product online now or contact us for further help on:
01582 761122 or email: websales@dmmusic.com
Related products:
XLR - XLR Mic Lead 10m
DM Price:
£20.00
(Includes VAT)
Speakon - Speakon (NL4) Speaker Lead 10m
DM Price:
£28.00
(Includes VAT)

2 x 900W @ 8 ohms
Class H amplifer
Compact & lightweight
Electro-Voice’s new Precision Series Compact amplifiers offer proven Precision Series performance and reliability in a new compact, lightweight format made possible by a highly efficient Class-H design, which generates considerably less heat. The flagship of EV’s Precision Series Compact amplifiers is the CP4000S. With up to 2x2100 watts into two ohms, and 2x1500 watts into four ohms, and only 19.2 lbs (8.7 kg it is both the most powerful and lightweight model in the line.

Features
* Designed for Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, Stadium Systems, and other applications.
* Up to 2 x 1600 W into 2 ohms
* XLR pass-though input connections
* The NL4 connection on output A also carries output B on pins +/- 2 to allow easy connection to bi-amped loudspeakers
* Extremely lightweight and highly efficient
* Class-H design
* Switch mode power supply
* Three-stage front-to-rear fans
* Complete protection package
* Classic EV amplifier dynamic headroom for real-world music and applications
* Built-in dynamic limiters
Amplifier Gain 32 dB
Continuous Rated Power
(1 kHz, THD 1%) 2? 2100 Watts
Continuous Rated Power
(1 kHz, THD 1%) 4? 1500 Watts
Continuous Rated Power
(1 kHz, THD 1%) 8? 900 Watts
Continuous Rated Power
(20-20 kHz, THD<0,2%) 4? 1200 Watts
Continuous Rated Power
(20-20 kHz, THD<0,2%) 8? 600 Watts
Electronics Type Amplifier
Input Impedance (Balanced) 20 kO
Input Sensitivity +7dBu
Intermodulation Distortion (SMPTE) 0.02 %
Maximum Bridged Output 4? 4500 Watts
Maximum Bridged Output 8? 3000 Watts
Network Control (IRIS-Net) No
Total Harmonic Distortion 0.05 %
Height 2RU 88.1 mm (3.47")
Width 483 mm (19.02")
Depth 368.8 mm (14.52")
Weight Net 8.7 kg (19.18 lbs)
