2 x 250W Powered mixer (4ohms)
6 mic, 2 stereo inputs
3 band EQ
2 aux sends
256 Digital effects
USB for computer connection

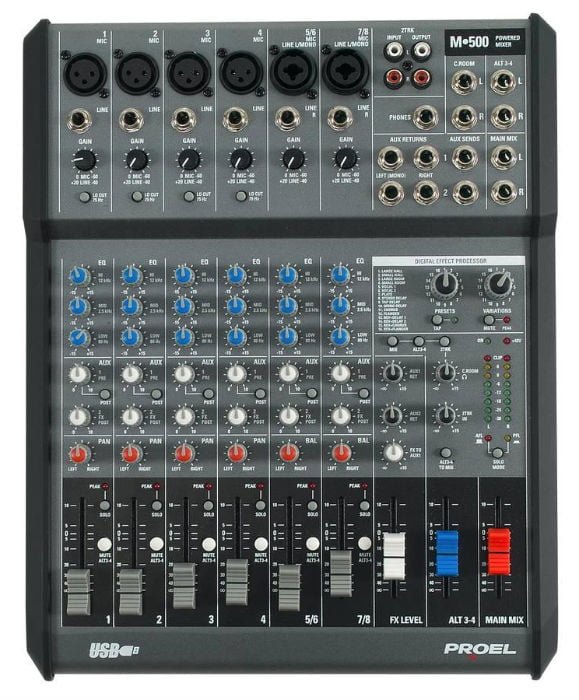

Carry case and rack mount included If you are still fond of your passive loudspeakers and you need a very compact mixer which can supply very high power, our M500USB is what you are looking for. Featuring the same sophisticated mixer section and the same 24-bit effect of the M8USB, this active mixer is equipped with a powerful 250W-per-channel amplifier featuring NEUTRIK SPEAKON connectors for the power outputs.

Perfect operation is guaranteed by a thorough protection system and by a variable-speed fan for optimum cooling of the output stages. The M500USB also features an interface for PC connection, adapters for rack mount and includes a sturdy bag for transportation.

Features
System type : 8 inputs powered mixer with digital effects & USB Power Supply : 230VAC 50/60Hz or 117VAC 50/60Hz
Phantom power : + 48 V all mono input
Output Power (THD<1% 1kHz) Stereo 4+4ohm : 250 W + 250 W RMS
Input Connectors : Mic Input Balanced XLR-F - Combo
Line Input Balanced TRS Jack
USB
Cooling : variabile speed DC fan
Weight : 5.7 kg(12.568lb )
Dimensions (W x H x D) : 28 x 12.5 x 35.2 cm
Notes : Carrying bag and 19" rack adapters included

Inputs : 6 MIC - 4 Line - 2 stereo line - USB
Input Sensitivity : Mic Input from 0 to -60 dB
Line Input from +20 to -40 dB
Input Impedance : Mic Input 2 Kohm
Line Input 10 Kohm
Output Connectors : Balanced TRS Jack and / or XLR-M - USB
Outputs : C\ROOM - MAIN MIX - ALT 3-4 - AUX 1 & 2 - PHONES - USB
Amplifier Output : 2 x SPEAKON
Output Levels : MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu
Headphones output impedance : min. impedance 32 ohm - max. out level (2x) 193 mW
Distortion (THD+N) : at +4dB, 1kHz < 0,008 %
Mono Input channel equalization : Lo Cut 75 Hz, 18 dB/oct.
HIGH (shelving) ±15 dB @ 12KHz
MID (peaking) ±15 dB @ 2.5KHz
LOW (shelving) ±15 dB @ 80Hz
Stereo Input Channel Equalization : HIGH (shelving) ±15 dB @ 12KHz
MID (peaking) ±15 dB @ 2.5KHz
LOW (shelving) ±15 dB @ 80Hz
Incorporated effects : HALL, ROOM, VOCAL and PLATE reverbs,
MONO, STEREO and TAP DELAY,
CHORUS and FLANGER,
REV + DELAY, REV + CHORUS and REV + FLANGER
16 step PRESET selector
16 step VARIATION selector
PEAK LED
MUTE and TAP DELAY switch
with LED indicator and footswitch
Damping Factor : >300 @ 4 ohm
Maximum Power Consumption : 400VA
Frequency response : 20 Hz to 30 kHz: +0 dB/-1 dB
Noise : unweighted < -93 dBu
Protections : DC voltage, short circuit, thermal, soft start
